Concrete Cover Installation Instructions
Effortlessly enhance your space with the range of HIDE Concrete Cover Kits - improved aesthetics by seamlessly blending into your slab and increased safety, adding exceptional value to any property. Install a HIDE Concrete Cover and make the most of your outdoor living space.
Introduction
Concrete is a widely used landscaping material, valued for its strength, durability, and aesthetic appeal. However, exposed access points in concreted patios, alfresco areas, and pathways disrupt the seamless look of outdoor spaces.
The industry standard is now to conceal these points with HIDE Covers—Concrete Covers are installed simultaneously with the surrounding concrete for a flawless, flush finish. This wet-pour method ensures the lid blends seamlessly into its environment, eliminating unsightly traditional covers while reducing slip and trip hazards. Additionally, HIDE Concrete Covers prevent unwanted access by children and enhance the overall aesthetic.
Each HIDE Concrete Cover kit includes detailed installation instructions (or a QR Code linking to them), clear diagrams, and a list of standard contractor tools required for installation. Designed for ease and efficiency, the process is straightforward for a professional contractor.
For a successful installation, engage a licensed contractor with the necessary experience. Before starting, ensure your contractor thoroughly reads the Installation Manual and adheres to the provided guidelines.
Access detailed instructions and video walkthroughs below.
Step one:

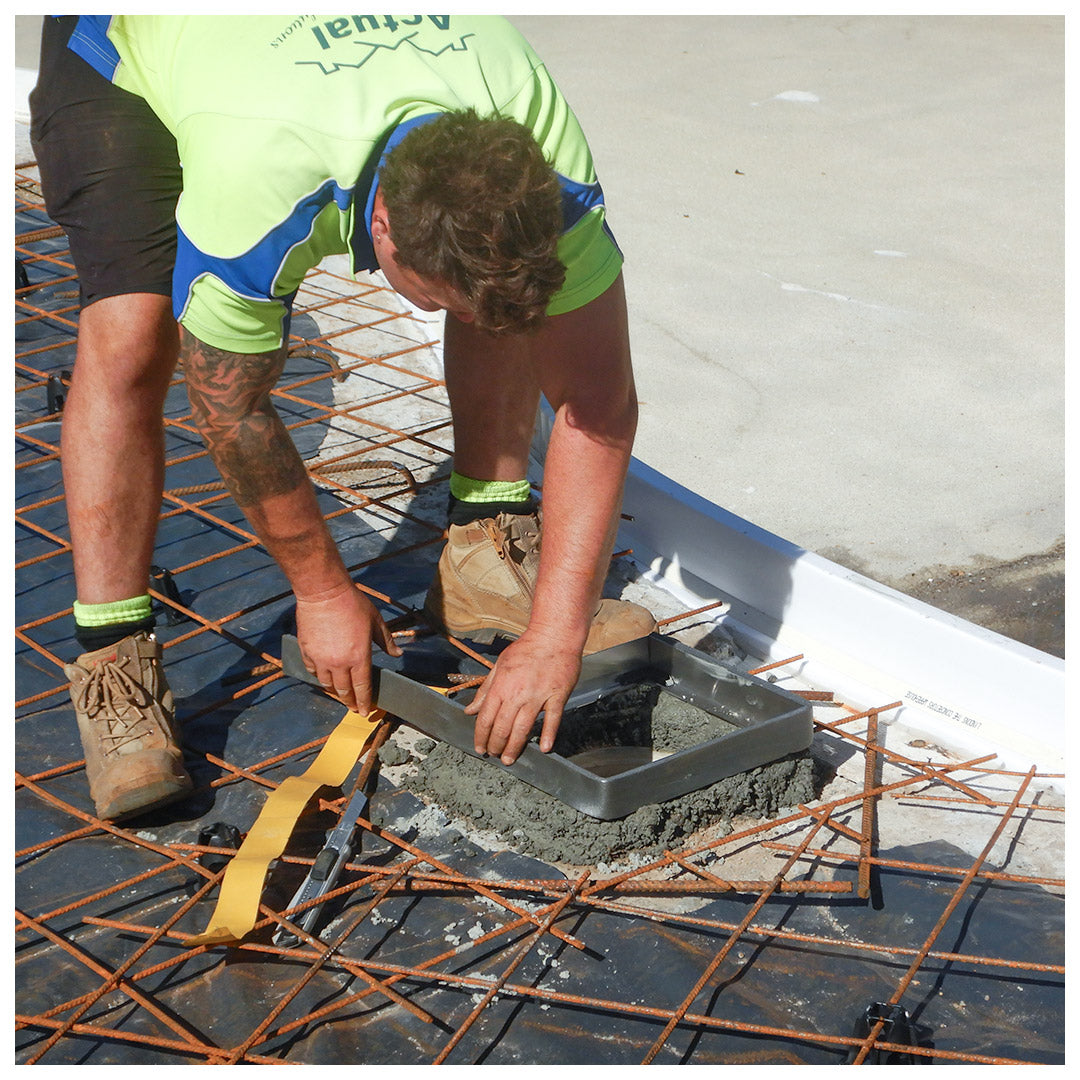

Calculate the boxing/form work required so the top rim of the installed Edge Protector will achieve a flush finish with the surrounding surface. Once the finished height is calculated, build up mortar/concrete bedding.
Step two:

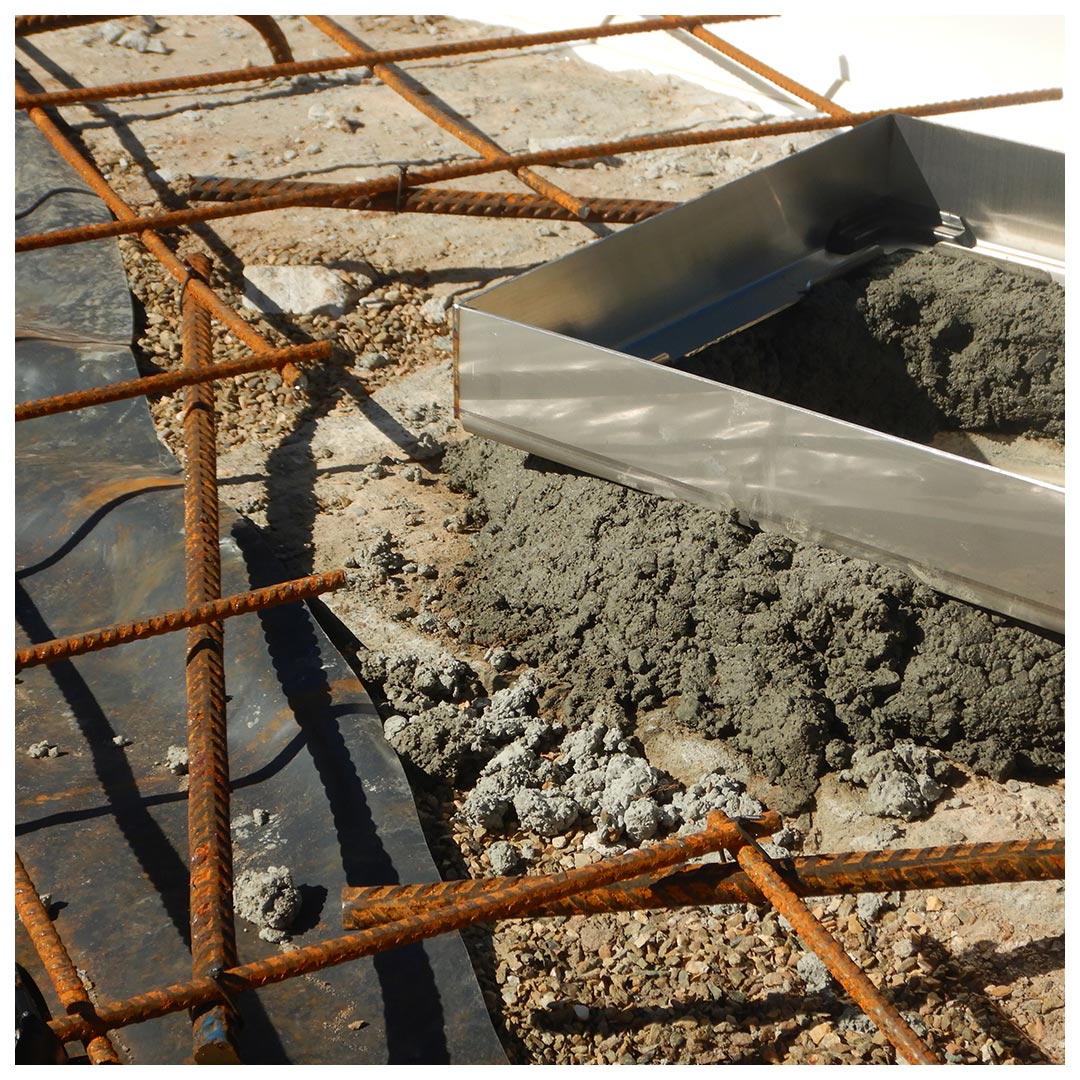

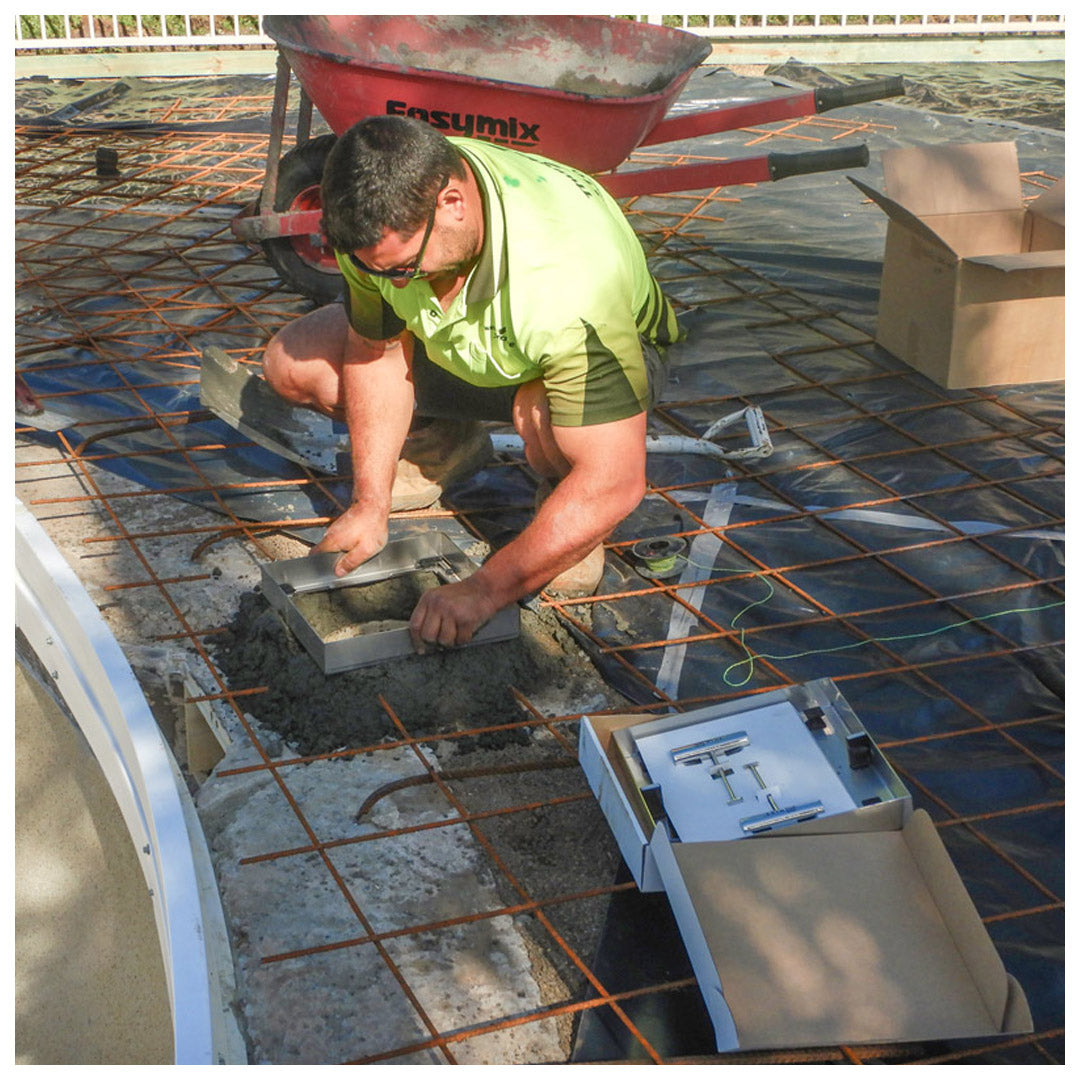

Place the Edge Protector on top of form work/bedding and leave to set in place before moving onto the next step.
To allow for slab movement Expansion Joint Filler Foam should be used.
Step three:

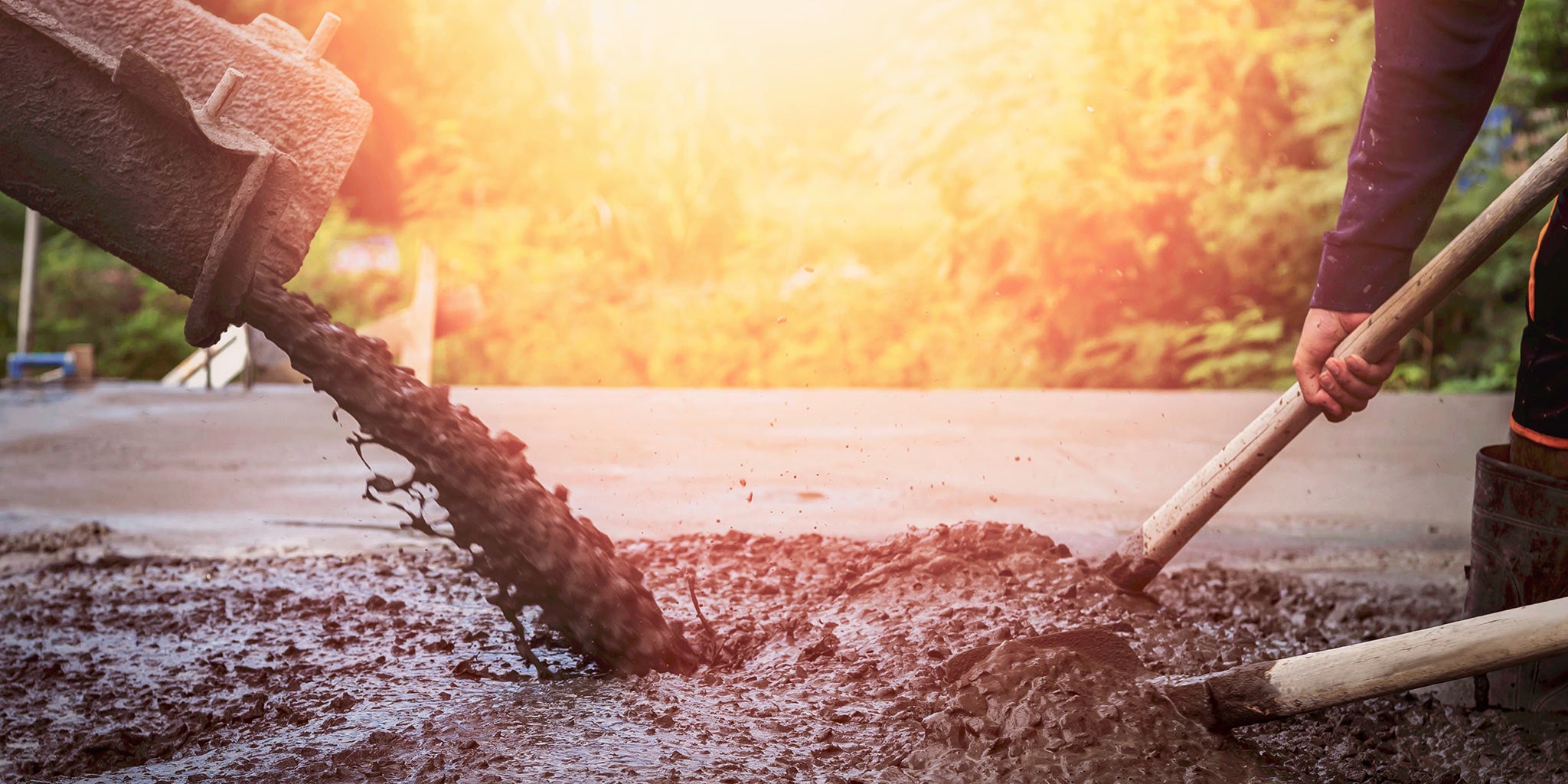

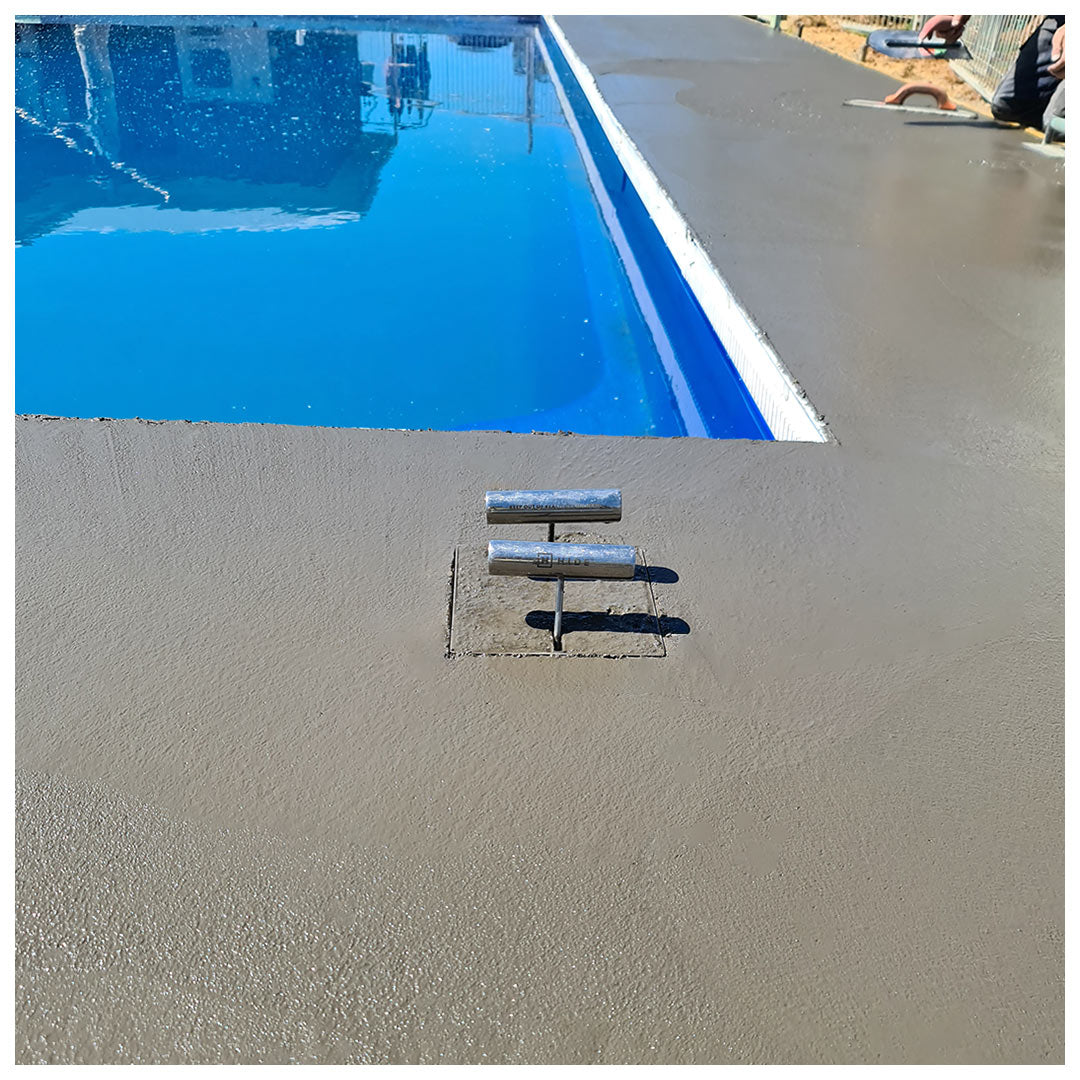

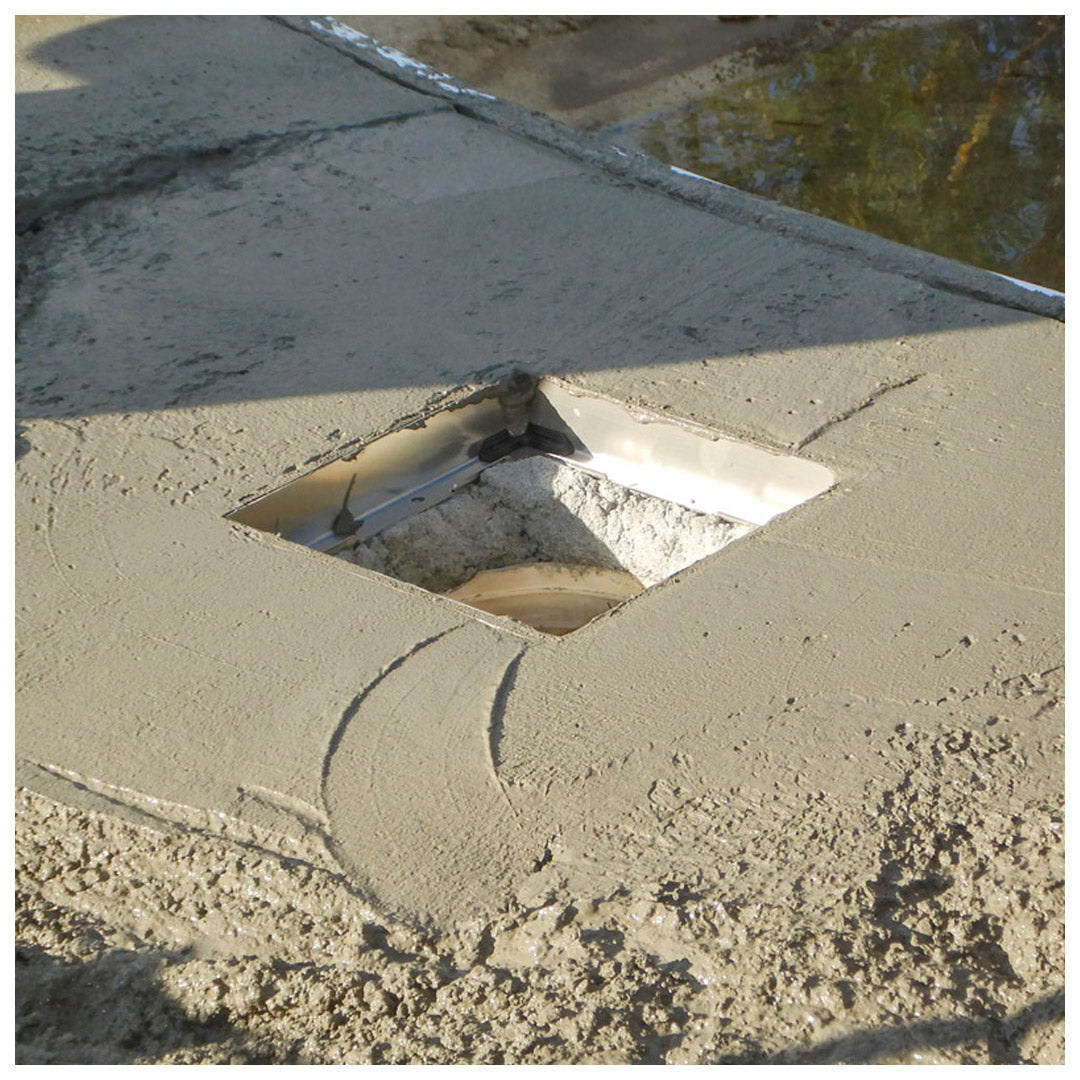

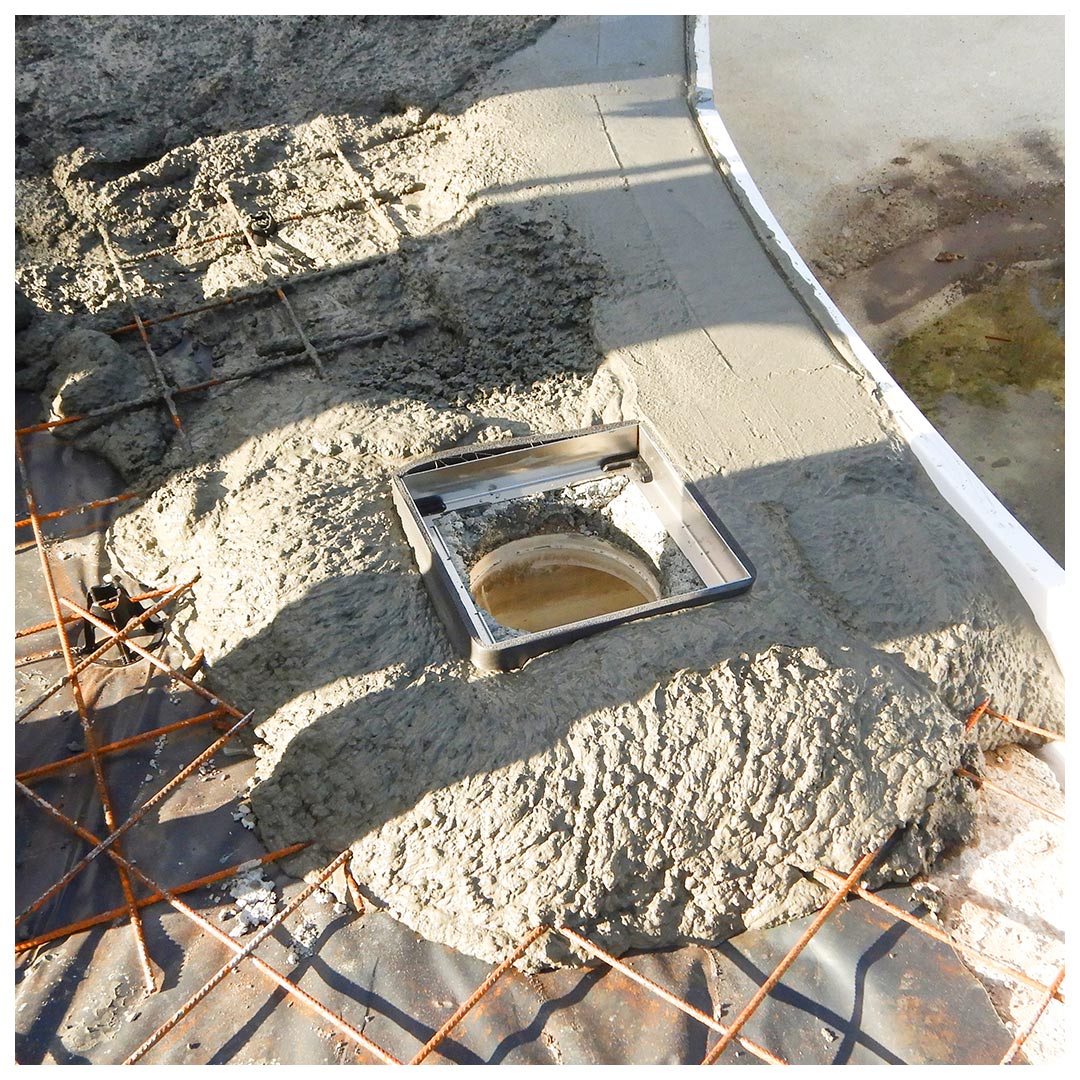

You are ready for the concrete pour! Pour the concrete until it is at the desired surface level finish around the HIDE recess frame.
HIDE Concrete Cover - Knowledge Base
Concrete Cover

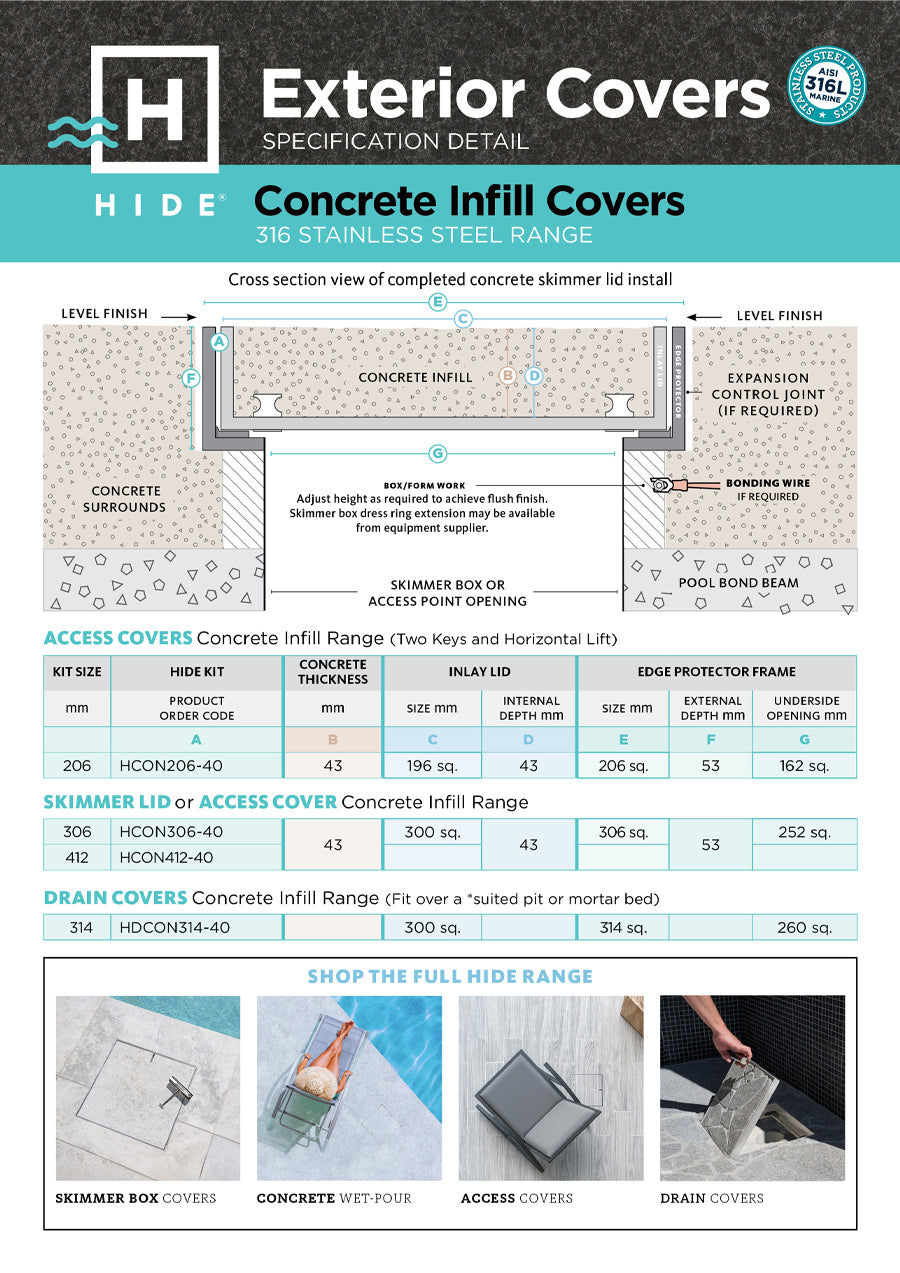

Product Specifications PDF with Sizes, Product Codes & Product Inclusions

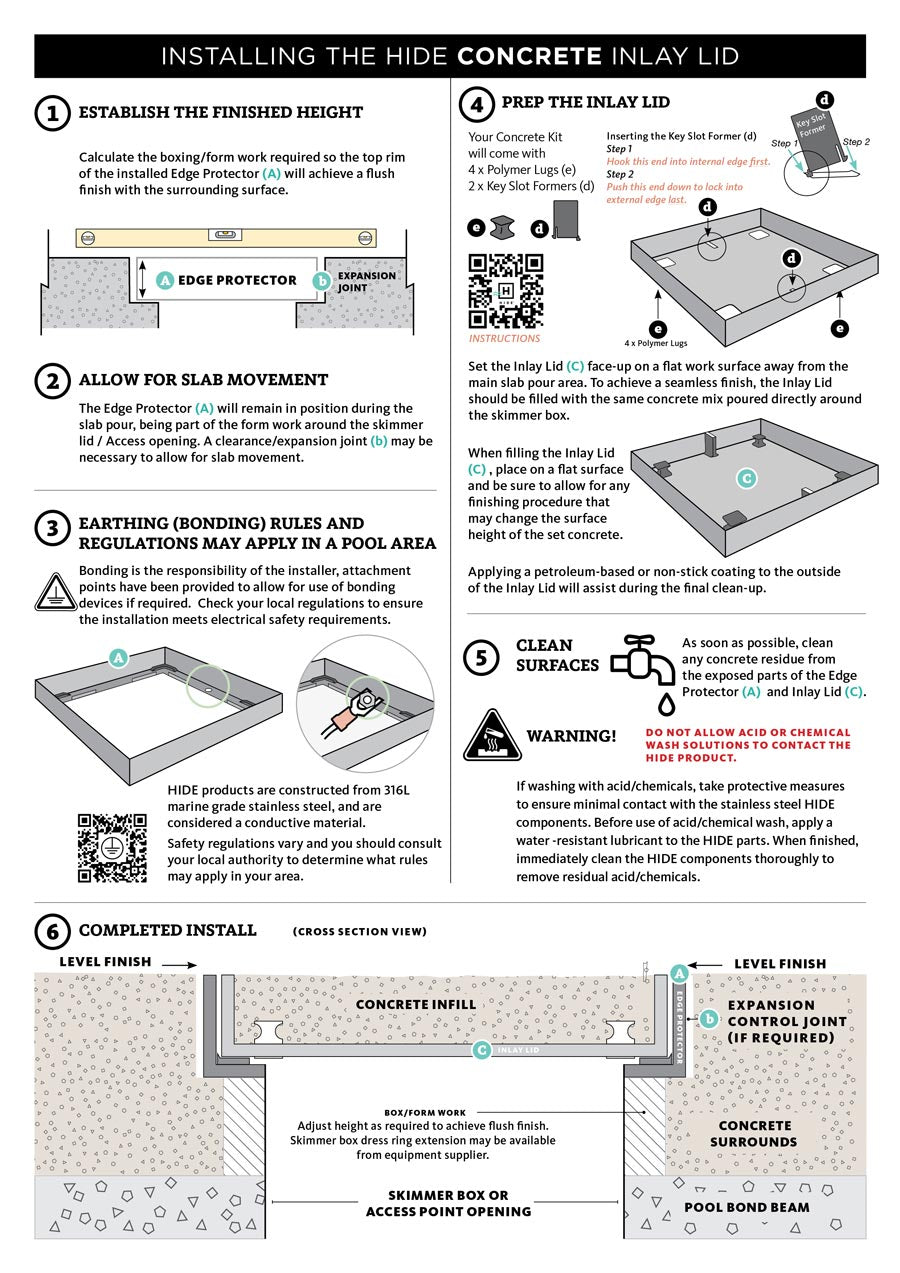

Installation Instructions
HIDE Concrete Cover installation instructions PDF
Installation
This detailed digital document covers extensive information regarding concrete cover installation
Components Explained
This YouTube video takes you through the use of the HIDE Concrete Lugs and Key-slot formers
Installation Guide
Video instructions to install a HIDE Concrete Cover.
Earthing
Around swimming pools, an important safety practice is earthing, read more about Electrical Safety
What's in your kit?
Getting to know what makes HIDE so great

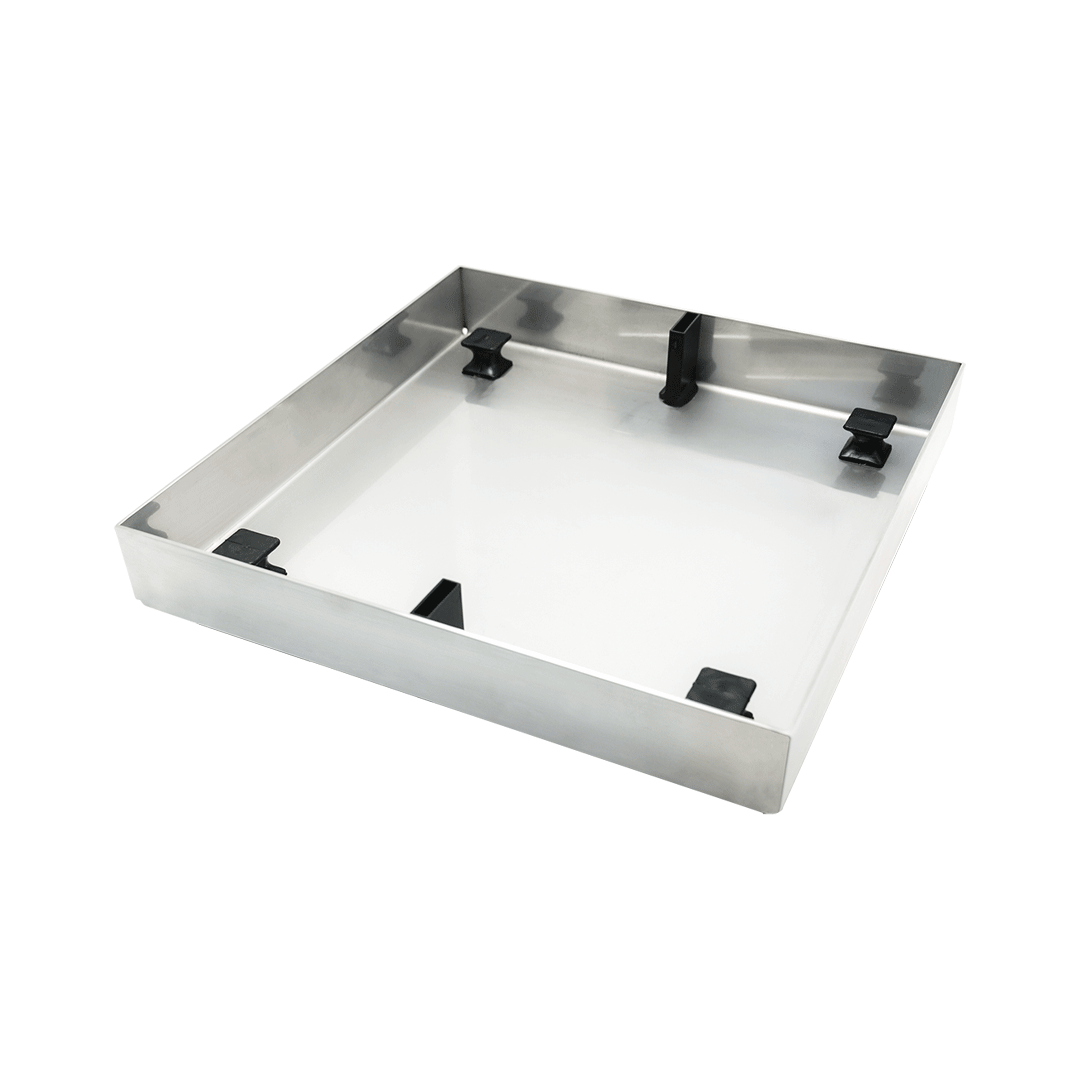

Inlay Lid
High-Quality Construction for Durability and Aesthetics
HIDE exterior covers are constructed from marine-grade 316 stainless steel, known for its durability and resistance to corrosion. The fully welded corners ensure lid rigidity and prevent twisting, while all internal corners are rounded to facilitate close tolerance fitting of the inlay materials.
Versatile and Seamless Integration
The Inlay Lid can be fitted with a variety of materials such as tiles, pavers, decking, or concrete, chosen specifically for your landscaping project. This allows for a seamless, flush finish that integrates perfectly into your landscaped area. Additionally, the design protects the inlay materials from chipping or breakages when the lid is opened or closed, enhancing both functionality and longevity.
Installation Considerations
- Expansion and Contraction - To accommodate the natural expansion and contraction of the steel, it is important not to fill the void between the lid and the inlay material with grout or other fillers. Careful cutting of the stone is essential to ensure a neat finish. As specified in our installation instructions, a small gap must be maintained between the lid and the inlaid stone to prevent any pressure or damage.

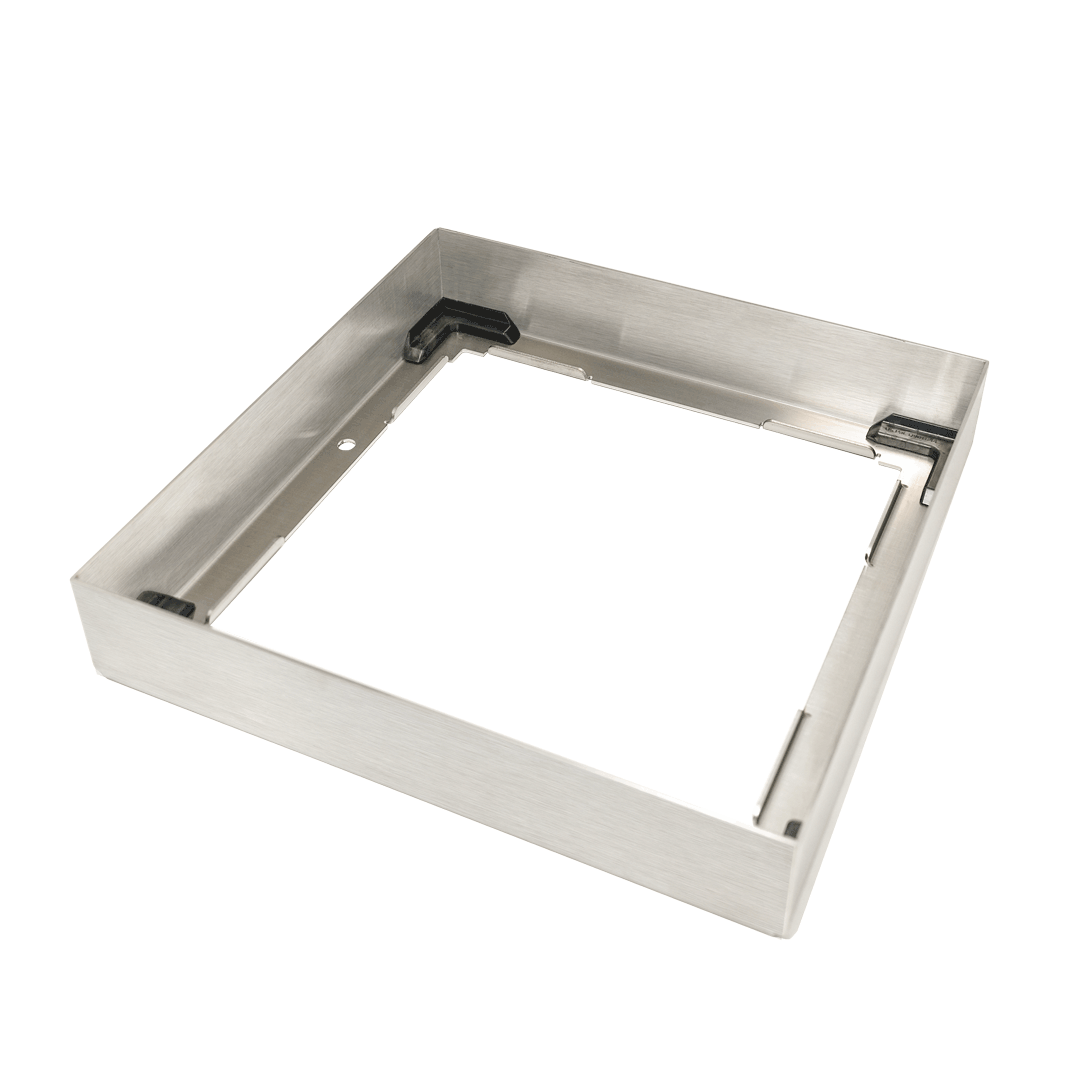

Edge Protector
Protective Frame for Landscaping Precision
Designed to accompany the Inlay Lid, the Edge Protector functions as a protective frame that sits on the outside perimeter of the lid. This feature is essential for safeguarding the coping and surrounds immediately adjacent to the lid against chips or breaks during operation. Additionally, it facilitates adequate drainage, thus preventing staining and leaching caused by water damage, maintaining the pristine condition of your landscaping elements.
Installation Considerations
- It's important to note that the Edge Protector is 15mm deeper than the lid. When preparing the bedding for installation, ensure to leave a recess to accommodate this extra depth.
- Also, you must leave an expansion gap around the Edge Protector. Fill this with flexible gap filler to match the colour of the grout.

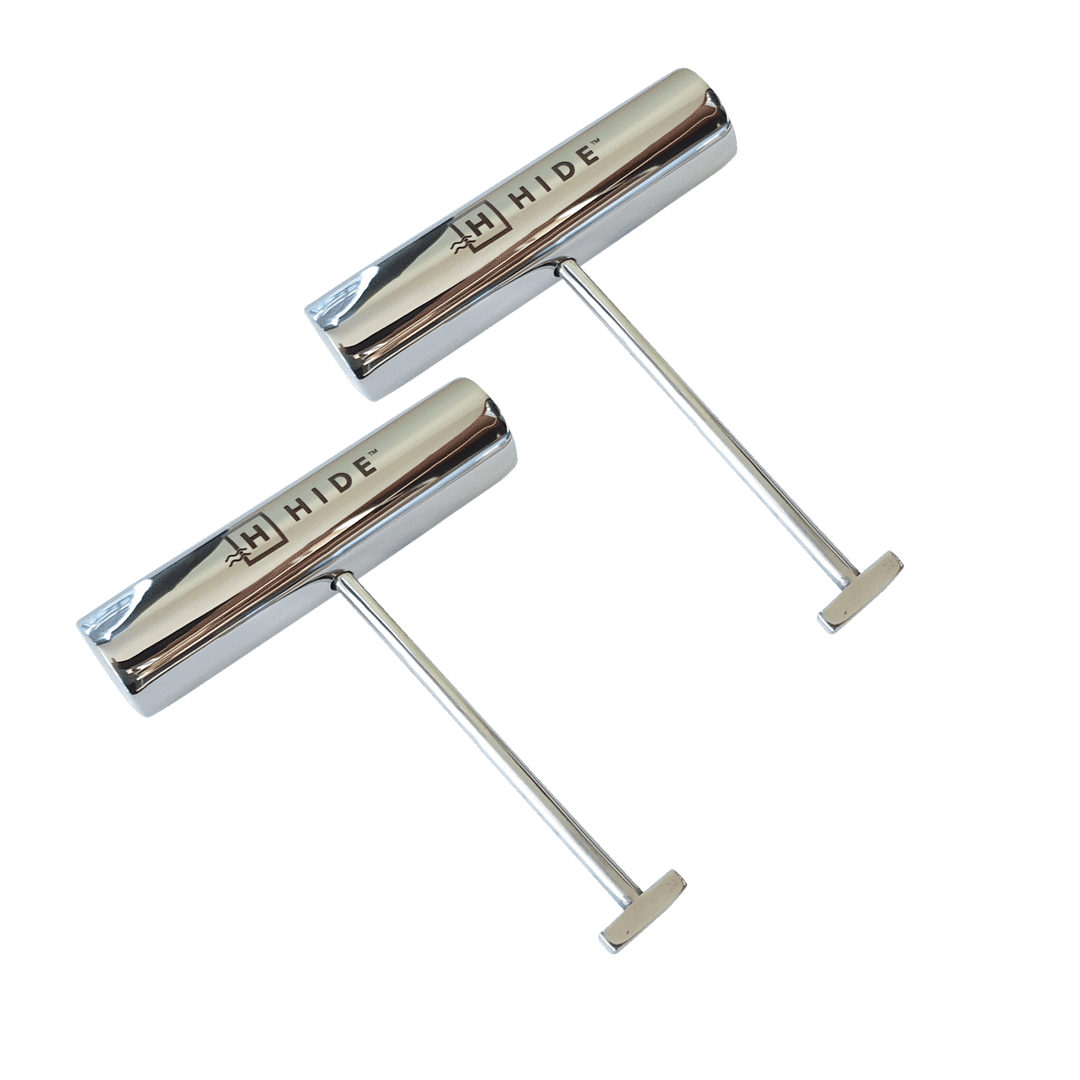

Safety Keys
High-Strength, Ergonomic Safety Key
Crafted from high-strength 316 stainless steel, our ergonomically designed safety key is precision-made to facilitate the safe and easy removal of the installed HIDE lid. This tool allows access to the contents within the skimmer while ensuring ease of use.
Important Safety Reminder
DO NOT LEAVE THE SAFETY KEY IN THE HIDE LID! Always store the HIDE Safety Key in a secure, childproof location, out of reach of children. It is crucial to return the key to its safe storage immediately after use to prevent children from accessing the skimmer, ensuring their safety and your peace of mind.

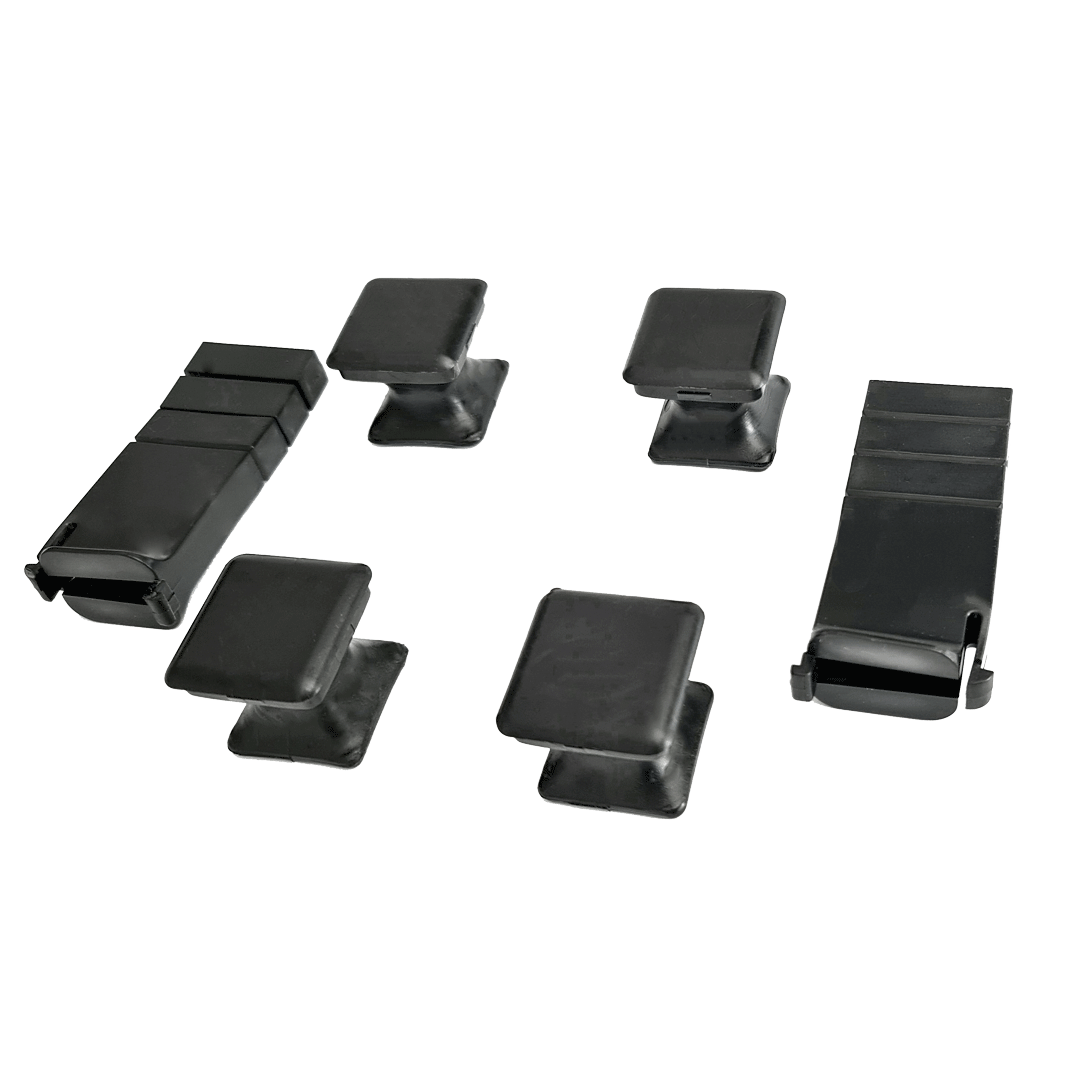

Lugs and Key Slot Formers
Specialized Adhesive for Inlay Lid Assembly
Our specially formulated adhesive is designed for use in assembling the inlay lid. It is perfect for securing the inlay tray and height adjuster (if required) to the inlay materials, ensuring a strong and durable bond.
Installation Guidelines
- Refer to the Contractor Installation Instructions for detailed guidance on applying the adhesive. Apply the adhesive in strips to ensure proper drainage. This method helps maintain the integrity of the installation while allowing water to drain effectively, preventing water damage and promoting longevity.

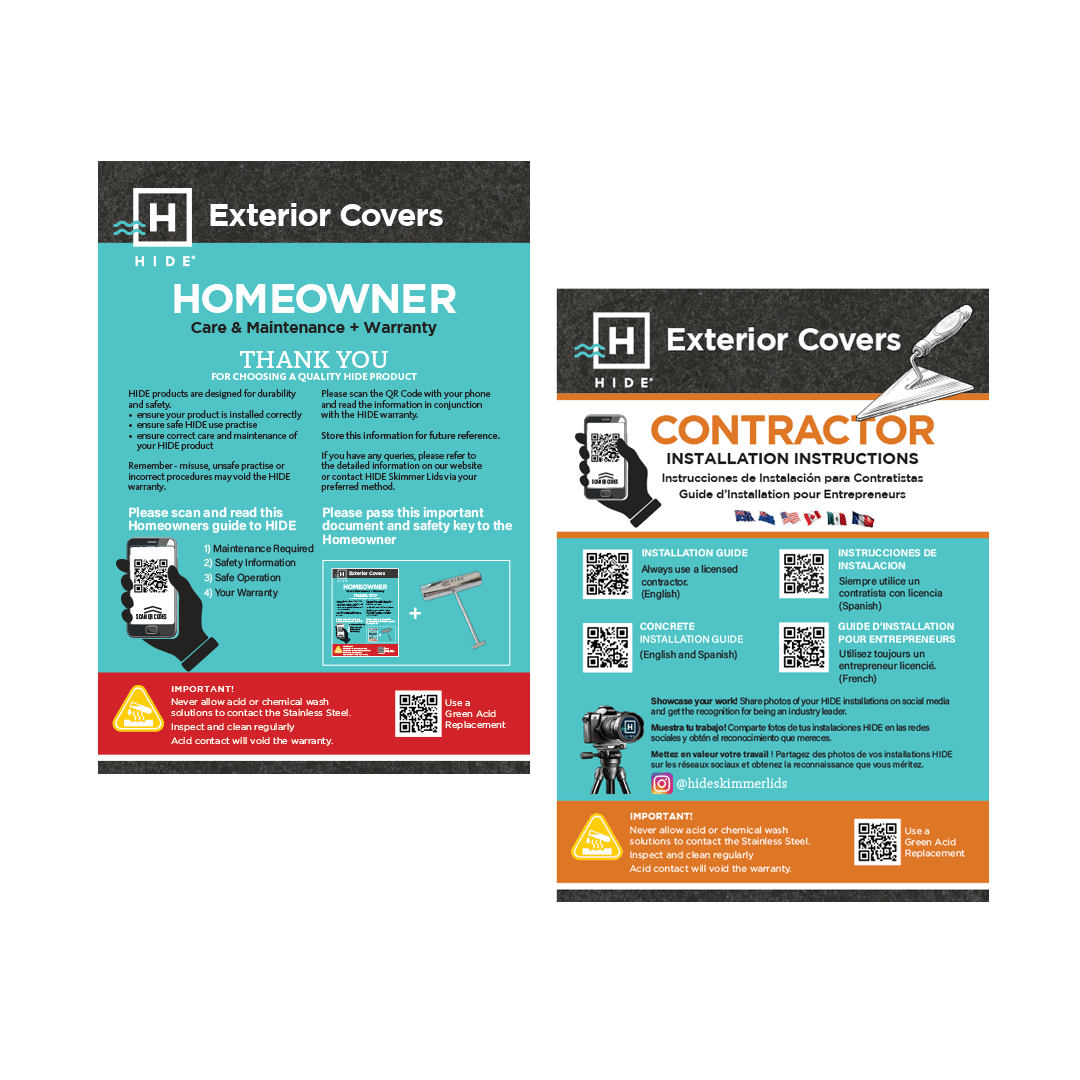

Documents
Installation and Maintenance
Included with our products are the 'Contractor Installation Instructions,' which feature a QR code that directs installers to the most current advice on correct installation techniques. This ensures that every installation is performed to the highest standards, leveraging the latest insights and methods.
Homeowner Care and Maintenance
Also included is the Homeowner Care and Maintenance plus Warranty pamphlet. This document is essential for helping homeowners understand how to safely use and maintain their installation. QR codes within the pamphlet link directly to detailed information on proper cleaning procedures and warranty details, providing easy access to vital resources that ensure the longevity and safety of their investment.
Inlay Lid
High-Quality Construction for Durability and Aesthetics
HIDE exterior covers are constructed from marine-grade 316 stainless steel, known for its durability and resistance to corrosion. The fully welded corners ensure lid rigidity and prevent twisting, while all internal corners are rounded to facilitate close tolerance fitting of the inlay materials.
Versatile and Seamless Integration
The Inlay Lid can be fitted with a variety of materials such as tiles, pavers, decking, or concrete, chosen specifically for your landscaping project. This allows for a seamless, flush finish that integrates perfectly into your landscaped area. Additionally, the design protects the inlay materials from chipping or breakages when the lid is opened or closed, enhancing both functionality and longevity.
Installation Considerations
- Expansion and Contraction - To accommodate the natural expansion and contraction of the steel, it is important not to fill the void between the lid and the inlay material with grout or other fillers. Careful cutting of the stone is essential to ensure a neat finish. As specified in our installation instructions, a small gap must be maintained between the lid and the inlaid stone to prevent any pressure or damage.
Edge Protector
Protective Frame for Landscaping Precision
Designed to accompany the Inlay Lid, the Edge Protector functions as a protective frame that sits on the outside perimeter of the lid. This feature is essential for safeguarding the coping and surrounds immediately adjacent to the lid against chips or breaks during operation. Additionally, it facilitates adequate drainage, thus preventing staining and leaching caused by water damage, maintaining the pristine condition of your landscaping elements.
Installation Considerations
- It's important to note that the Edge Protector is 15mm deeper than the lid. When preparing the bedding for installation, ensure to leave a recess to accommodate this extra depth.
- Also, you must leave an expansion gap around the Edge Protector. Fill this with flexible gap filler to match the colour of the grout.
Safety Keys
High-Strength, Ergonomic Safety Key
Crafted from high-strength 316 stainless steel, our ergonomically designed safety key is precision-made to facilitate the safe and easy removal of the installed HIDE lid. This tool allows access to the contents within the skimmer while ensuring ease of use.
Important Safety Reminder
DO NOT LEAVE THE SAFETY KEY IN THE HIDE LID! Always store the HIDE Safety Key in a secure, childproof location, out of reach of children. It is crucial to return the key to its safe storage immediately after use to prevent children from accessing the skimmer, ensuring their safety and your peace of mind.
Lugs and Key Slot Formers
Specialized Adhesive for Inlay Lid Assembly
Our specially formulated adhesive is designed for use in assembling the inlay lid. It is perfect for securing the inlay tray and height adjuster (if required) to the inlay materials, ensuring a strong and durable bond.
Installation Guidelines
- Refer to the Contractor Installation Instructions for detailed guidance on applying the adhesive. Apply the adhesive in strips to ensure proper drainage. This method helps maintain the integrity of the installation while allowing water to drain effectively, preventing water damage and promoting longevity.
Documents
Installation and Maintenance
Included with our products are the 'Contractor Installation Instructions,' which feature a QR code that directs installers to the most current advice on correct installation techniques. This ensures that every installation is performed to the highest standards, leveraging the latest insights and methods.
Homeowner Care and Maintenance
Also included is the Homeowner Care and Maintenance plus Warranty pamphlet. This document is essential for helping homeowners understand how to safely use and maintain their installation. QR codes within the pamphlet link directly to detailed information on proper cleaning procedures and warranty details, providing easy access to vital resources that ensure the longevity and safety of their investment.
Backed by a 10 year warranty
Here’s the revised version with your change:
When you choose a HIDE kit, you’re investing in a premium product backed by a 10-year warranty. Designed for durability and long-term performance, HIDE lids are made from high-grade stainless steel, ensuring safety and a seamless finish. With minimum maintenance required, our lids are built to withstand the elements.
HIDE’s warranty covers the Safety Key, the Inlay Lid, and the Edge Protector—unlike many traditional landscape lid options that suffer from durability issues, requiring frequent and costly replacements. Often, these alternatives offer little to no warranty coverage.
Which option would you prefer?
FAQs:
Can HIDE lids be retrofitted into existing landscapes?
Yes, HIDE lids can often replace existing skimmer or access covers. A professional contractor can assess and modify the existing opening to fit the appropriate HIDE lid size.
What inlay materials are compatible with HIDE lids?
HIDE lids can support various materials such as tiles, pavers, stone, timber decking, and wet-pour concrete. Inlay depths of HIDE Kits can handle materials up to 60mm thick.
What maintenance is required for HIDE lids?
HIDE lids are designed for durability with minimal maintenance. Regular checks and occasional cleaning will help maintain their appearance and functionality.
What should I do if I lose the Safety Key?
Replacement Safety Keys can be purchased, and it is crucial to store them securely and away from children. Proof of purchasing an authentic HIDE Kit is necessary. If stored correctly, broken keys are covered under warranty.
What are common issues with traditional skimmer covers?
Traditional covers, especially plastic ones, can become brittle over time due to sun exposure, leading to cracks and breakage. Loose stone covers break and become a hazard. They are not pool safety compliant.
Remove trip & slip hazards
Why would you choose a traditional plastic cover when the skimmer box cover can be hidden with HIDE Covers?
Integrated patterns
Each HIDE kit contains comprehensive installation instructions (or a QR Code Linking you to it) with diagrams and a list of standard contractor tools required to complete the installation. The process is quick and easy for a professional contractor.
Please ensure you have engaged a licensed, suitably experienced contractor to install the HIDE product. Prior to commencing the installation, please ask your contractor to read the Installation manual thoroughly and follow the instructions closely when fitting.
Plan for a flush finish
For a seamless finish, the Edge Protector must be installed flush with the surface of the surrounding tile or concrete. This ensures a level transition between the HIDE lid and the surrounding area, eliminating trip hazards and maintaining a clean, integrated look. Proper installation requires precise height adjustment before securing the Edge Protector in place.
Always check for levelness before allowing the adhesive or concrete to set to ensure a perfect flush finish.
FAQ: HIDE Warranty
What does the HIDE warranty cover?
HIDE offers a 10-year warranty covering the Safety Key, Inlay Lid, and Edge Protector. This warranty ensures your HIDE cover is free from material and manufacturing defects under normal use.
Does the warranty cover rust or corrosion?
HIDE lids are crafted from marine-grade 316L stainless steel, known for high corrosion resistance. Despite this, environmental elements like salt exposure or pool chemicals may impact appearance. Regular cleaning preserves the finish, but warranty doesn't cover discoloration or tea staining.
What is not covered under the warranty?
The warranty does not cover:
- Damage from misuse, improper installation, or modifications
- Wear and tear, surface discoloration, or cosmetic changes
- Inlay material (stone, tile, or other finishes added to the lid)
How do I make a warranty claim?
Contact your HIDE distributor or retailer with proof of purchase, photos of the issue, and installation details. Claims will be assessed to determine eligibility under the warranty terms.
Downloads
Care & Maintenance
With a little routine care, your HIDE Cover will stay clean, corrosion-free, and beautifully seamless for years to come. Our Care & Maintenance page walks you through the do’s and don’ts—like avoiding harsh chemicals, preventing tea-staining, and using the right cleaning tools. Click to discover how easy it is to keep your HIDE Cover in top condition.
Electrical Compliance
For safety and peace of mind, it's important to ensure your HIDE Cover installation complies with local electrical regulations, including bonding or earthing where required. Our Electrical Compliance page offers helpful advice, explains when bonding may be necessary, and points you to local guidelines so you can stay compliant and confident on-site.
